The other morning I got up at stupid O’clock to shoot a dawn time-lapse of the York Town Hall. So what do you do while you’re hanging around waiting for it to finish? Why take photos of course! So while the Leica D-Lux clicked away doing it’s time lapse thing I set up the Sony A7r and started taking snaps of the town hall. Good job I did as the time lapse wasn’t that crash hot.
The Olympus OM Zuiko 21mm f3.5 was one of the original lenses released with the OM1 in 1972. It is fair to say that the lens has tended to be ignored somewhat since the release of the f2 version, this was true in the days of film and it is especially true today with the current trend of mounting legacy glass on cameras such as the Sony A7r. Demand for a product dictates the price and copies of the f2 change hands on eBay for over $1000 USD while the f3.5 goes for around $350 USD. Apart from the aperture what other differences are there between the two? Well asymmetrical-type ultra wide-angle lenses are designed for optimum performance at infinity and unfortunately when used at their closest focusing distance picture quality has a tendency to deteriorate. The 21mm f2 lens incorporates a floating element system for improved sharpness from its close 0.2 meter (0.7 ft) minimum focusing distance to infinity and ensuring its superlative optical performance be extended to its closest working range. So what are the advantages of the 21mm f3.5? Well it fits Yoshihisa Maitani’s design criteria for the OM system – being lightweight and very compact. This thing is

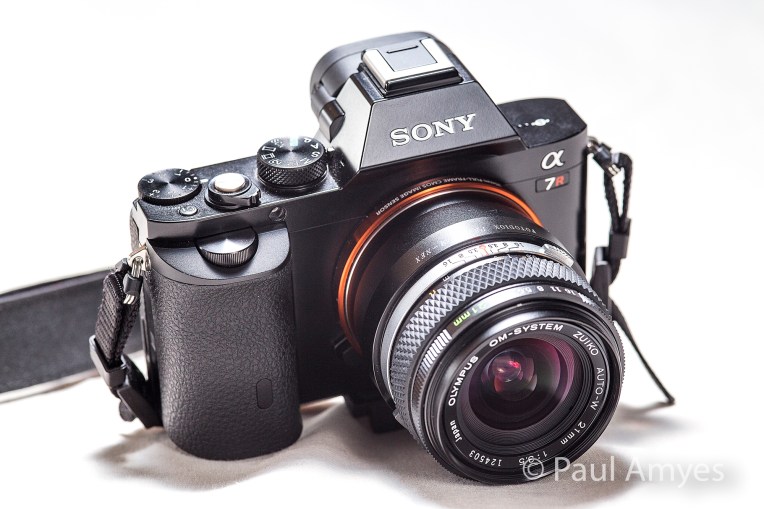

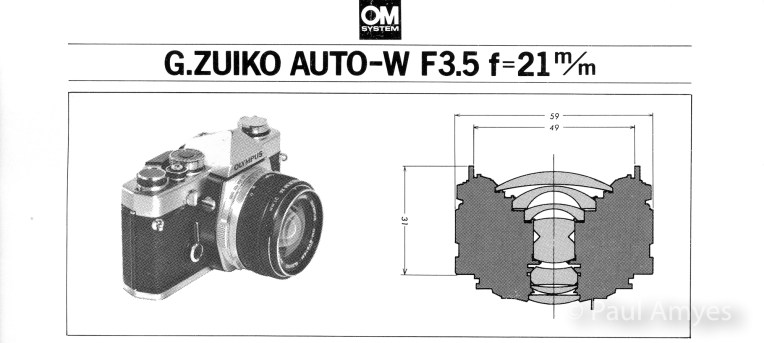

absolutely tiny. It is about the same size as the Fotodiox OM to NEX adapter. Most other camera systems would call this a pancake lens – it’s not, it’s just that most modern DSLR cameras are very bloated and unnecessarily large. Optically it has 7 elements in 7 groups, is 31mm (1.2 inches) long, 59mm (2.3 inches) in diameter and has a filter thread of 49mm. Like most Olympus OM lenses there are different versions of the lens – the original weighed in 185g (6.5 oz) while the newer MC (multi coated) one, which is tested here, is 180g (6.3 oz) while sharing the same optical construction and exterior dimensions. Although it does not have the floating rear element of the f2 version it still focuses down to 20cm (7.87 inches) and the quality is reasonable.

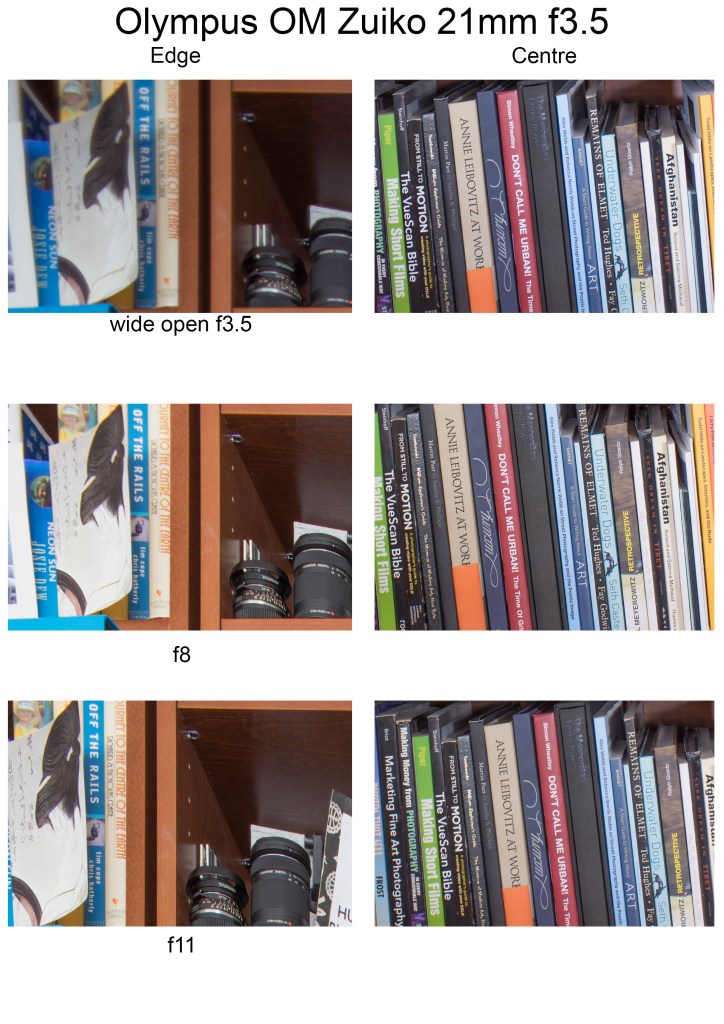

Using my standard book shelf test it is immediately apparent that the lens has noticeable barrel distortion. This is not uncommon in wide-angle lenses and occurs where the image magnification decreases with distance from the optical axis and makes parallel straight lines look like the edges of a wooden barrel. These days this can be easily corrected in post. Looking more closely it is easy to see chromatic aberration on high contrast edges, again easily corrected in post. Wide open at f3.5 the centre of the image is sharp with what would now be construed as having low contrast but is actually quite good and can easily be improved on with a quick adjustment in curves. The edges are very soft and lacking in contrast – not mush but would be easily noticeable in architectural shots. At f8 the centre has improved and you can forget the thoughts of a contrast adjustment. The edges have improved but they are still not good. It is at f11 where things start to come very good, the centre is excellent and the edges are not far off. Any further stopping down and optical quality will drop off due to the effects of diffraction. Vignetting is very apparent when wide open – maybe 2 to 2 1/2 stops difference between the centre and the corners. Things improve significantly by f8. Flare is very well controlled considering the angle of view and the sun stars are quite nice considering there are only six aperture blades.

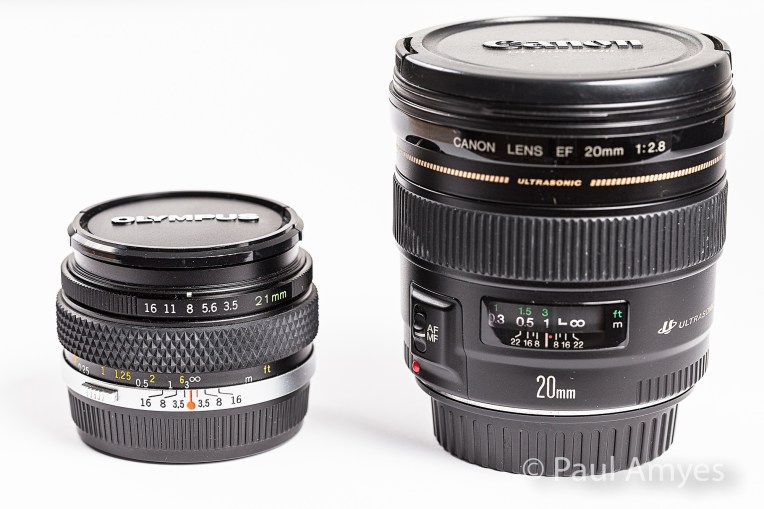

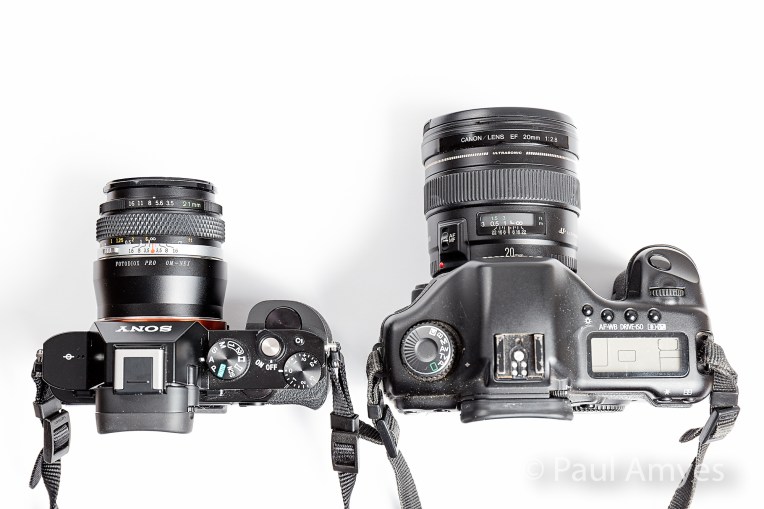

So keeping in mind this is a sample of just 1 and I have no idea if this is a good example or a bad what can I say about this lens. Well I happen to own a Canon EF 20mm f2.8 and while not one of Canon’s primo L lenses it is considered quite a respectable performer when stopped down. When we compare the two the first thing that comes to mind is the size difference. As I said before the Olympus is tiny, and it still looks small when attached to the lens adapter. Vignetting on the Canon is very well controlled, this is the big benefit of that large front element (72mm filter size compared with 49mm). Chromatic aberration is no better and no worse. It is the wide open corner sharpness where the Canon beats the little Olympus, but not hugely so and by f5.6 they are both pretty much the same. The big advantage the Olympus has over the Canon is filter use – the smaller size makes filters more affordable and I would hazard that is one of the few, if not only, ultra wide-angle lens that safely use the Cokin P system (84mm in width). My Canon still vignettes with the larger Cokin Z-Pro system (100mm in width).
Well my only criticism of this lens is really nit-picking. It is just that aperture of f3.5 is a little dim and if I were to use it on an SLR (digital or analogue) it would make focusing using a split screen finder a little bit tricky. With the EVF of the A7r it makes no difference as the view can be made brighter and the focus peaking is easy to see. Probably this is not the lens to buy if you’re into astro, but if you shoot landscape and architecture as I do then it is a worthy addition to the camera bag.
The other OM lenses I’ve looked at are:
Olympus OM Zuiko 135mm f2.8
Olympus OM Zuiko MC 50mm f1.4
Olympus OM Zuiko 35-105mm f3.5-f4.5
Olympus OM Zuiko MC 35mm f2
Olympus OM Zuiko MC 24mm f2.8
If you have slightly geeky bent, and to be honest if you are reading a photography blog it’s pretty much a given that you have, then Adobe’s Lightroom has several useful tools. One of the ones I’ve been looking at is the ability to look at your photographic work for a specific time frame, and in this case it’s for the year 2016. You can also look at the cameras and lenses you used for that period which enables you to see what patterns of equipment usage emerge. It might ultimately save you money i.e. if you have a hankering for an expensive lens you can look back on your past year to see if that focal length/s you used and whether the objective lens of your desires is one you’d actually use or not. This has actually happened to me – a while back I was working on my project Broncos and Bulls and I felt that the Canon EF 75-300 f4-5.6 IS was costing me shots as it wasn’t the fastest lens to focus and the images at the long end were pretty soft. I wanted a Canon 100-400 L IS but my then preferred local dealer didn’t have one in stock and after waiting nearly 3 months they informed they couldn’t get one. I allowed them to talk me into buying the Canon 70-200 f2.8 L IS with the Canon x2 converter which they had in stock. Their logic was that I’d end up using the 70-200 much more and would hardly use it combined with the teleconverter. Now looking back through my Lightroom library I can see that I’ve hardly used the 70-200 at all on its own and virtually all the times I have used it was in conjunction with the teleconverter. I should have stuck to my guns and gone to another dealer and that way I’d have a lens that met my needs gave and gave good image quality rather than put up with a convenient compromise.
longer already, the main thing is that I enjoyed using legacy lenses and was more than happy with them in terms of image quality. I don’t have to use legacy lenses at all as I have 20 to 600mm covered by modern dedicated AF lenses. For work where it is appropriate I will use the legacy lenses because they give a certain aesthetic that I like which is a less digital and clinical look.
Well what will 2017 bring. Well for 2016 I experimented with finding a certain look. For 2017 will be more project driven as I have found the style I wanted and now want to put it to practice. There will be at least one new book (work on that has already started) and there will be some multi media projects. So exciting times indeed.
I hope for my readers that 2017 will be all that you hope and that you’ll be healthy and happy.
This is my fifth look at classic Olympus OM Zuiko lenses and how they perform on a Sony A7r.
Many years ago I had a very basic camera kit consisting of an Olympus OM Zuiko 50mm f1.8 and 135mm f2.8 lenses with an Olympus OM20.One summer I made a series of portraits of friends down on the beach at Bognor Regis and shot a couple of concerts using the 135mm. The speed and shallow depth of field enabled me to get some shots that sold very well and that cemented the idea of my turning professional in my mind. Unfortunately I was seduced by the lure of zoom lens convenience and part exchanged the 135 for the Olympus 35-105mm. While the zoom was very good and became my photographic workhorse I regretted letting the 135 go.
Fast forward some 30 years and I’ve been re-appraising my OM lens collection by mounting them on a Sony A7r. The results have exceeded my expectations so a little while ago I found my trawling EBay idly when I found a brand new OM 135mm f2.8 lens – and I mean brand new, never used complete in its unopened box. So I hit the “buy now” button and waited patiently for the lens to arrive. When it finally got here it was like being re-united with an old friend. The lens feels gorgeous – reassuringly sold and just oozing quality.The detents of the aperture ring cause it to have a very pleasing click as the ring is turned, and the focusing ring has a wonderfully smooth dampened action. The built in lens hood is a delightful touch in this day of $100 options one has to pay to get one for many modern lenses.
The E-Zuiko AUTO-T 135mm f/2.8 was one of the first lenses released when the OM system was launched in 1972. It is easily identifiable thanks to the chromed front filter ring (the so-called “silver nose”). In 1977 it was replaced by the Zuiko AUTO-T 135mm f/2.8. Other than the improved multi-coated optics and some cosmetic changes (notably the loss of the silver nose) the lenses are largely the same with an optical formula of 5 elements in 5 groups and both versions come in at a svelte 360g (12.7 oz) The lens departs from the common Olympus filter size of 49mm and uses one of 55mm to allow a larger front element to facilitate the extra light gathering capability of this over the f3.5 version. This is a very modest size though in this day of 77 and 82 mm filter threads used on many modern lenses. Common to all Olympus OM prime lenses the aperture ring is forward of the focusing ring which makes the lens well-balanced in the hand and easy to use. In this day and age of F1.4 and f1.2 primes the maximum aperture seems a little pedestrian, but the aperture range of f2.8 to f22 allows for depth of field control when combined with the compression effect of a true telephoto.
So down to the nitty-gritty – how does the lens perform on a modern digital camera. The quick answer is very well. Barrel distortion is virtually non-existent. In term of sharpness wide open the lens is pleasantly sharp although lacking in contrast and this improves when the lens is stopped down to f8. At the edges at f2.8 predictably the lens is very soft and has poor contrast. This is not altogether surprising considering the very simple design with no exotic elements. Things improve by f8 although it does not reach the standards of the centre.Vignetting is obvious wide open and again clears up as the lens is stopped down and disappears at f8. There is some chromatic aberration but it is very mild and easily fixed in Lightroom. The bokeh is nice and smooth but with only 8 aperture blades the “bokeh balls” turn into octagons as you stop down. When stressed by shooting into the sun veiling flare is very apparent, the solution to this is use a lens hood and that is easy as it is built into the lens.
One of the things I noticed when using this lens is that the weight and the resistance of the focusing ring shows the short comings of the Fotodiox adapter. You can feel the lens moving in the adapter as you turn the focus ring. The cheap no-name Chinese version was a lot worse. I am thinking about getting some longer lenses, but after this I think I’ll have to investigate a better adapter such as the one made by Novoflex.
So to sum up – to get a better lens you’ll have to spend a lot of money on a more modern highly corrected design. With the softer edges the lens makes a very good portrait lens and you could make a strong argument that the decreased contrast in the centre at f2.8 and f4 would make it very suitable for glamour photography. The true telephoto effect of this focal length makes it a useful lens when you wish to compress perspective when shooting landscapes. The focus throw is a little over 180º and that makes finding focus a precise affair and would appeal to film makers. All in all if you want a manual focus telephoto for use on a full frame sensor then seriously consider this one.
So far I have looked at the following Olympus lenses:-
Some years ago I was going through a phase I called “delusions of Bresson“. It involved hanging around on the street corners of Perth with a range finder camera fitted with a 35mm lens. It enabled me get close enough to my subjects but not ground them. In modern terms 35mm is not considered a wide-angle lens – in fact quite a few photographers brought up in the digital age think that wide angles start at 20mm (35mm full frame equivalent) – 35mm is seen more as a widish standard lens. Either way it is how I have come to see the world and I consider a 35mm prime (or its equivalent angle of view depending on format size) to be an essential item in my camera bag and this brings me to the Olympus Zuiko 35mm f2 lens.
There are again multiple versions of this lens. The first silver nosed single coated version was 42mm in length, 230g in weight and had a filter thread of 49mm. This MC version is 43mm in length, 240g in weight and has a filter thread of 55mm. It has an optical construction of eight lens elements in 7 groups and a minimum focusing distance of 0.3m.
There is slight barrel distortion evident in the test image. CA is present when wide open and clears up on stopping down Wide open the lens is quite soft and lacking in contrast both in the centre and at the edges. Both sharpness and contrast improve in the centre when stopped down to f8. The edges show some signs of improvement but not as much as the centre. Wide open there is some vignetting but that quickly disappears as you stop down. The lens is quite prone to flare, especially ghosting flare, when there is a point light source in the frame. The solution is to use a lens hood or you can do as I sometimes do and use my cap as a French flag. The alternative approach is to embrace the flare and use it creatively in your photos and videos.
If you can find a good clean copy of the multi-coated version of this lens at a good price then I recommend you pounce on it. It is a wonderful characterful lens that makes its modern counterparts look sterile and boring.
My reviews of the Olympus 24mm f2.8, 35-105mm f3.5-4.5 and 50mm f1.4 can be found by clicking on the links.
Hillside Farmhouse was designed by Sir Talbot Hobbs, a leading architect and built in 1911 for Morris Edwards in the historic Wheatbelt town of York in Western Australia. Sony A7r with Olympus OM Zuiko 35-105mm f3.5-4.5 lens mounted via a Fotodiox adapter, Cokin circular polarizing filter and +3 stop graduated neutral density filter. Exposure 4 seconds, f16, ISO 50.
So far I’ve looked at a couple of primes and now I’m going to turn my attention to a standard zoom, the Olympus OM Zuiko 35-105mm f3.5-f4.5.
Introduced in 1983, which is when I bought my copy. This lens was often rumoured to have been designed and made by Tokina, but this has been refuted online and it would appear that it differs significantly enough that it can be until otherwise proven an Olympus lens.
Over its production cycle there were two variants produced. The first version, which is the one I have, with serial numbers below 500,000 weighs in at 460g, is 116mm fully extended (in macro mode) and 86mm retracted, the rubber focusing grip is 42mm wide, and there is and Infra Red (IR) focusing mark above the aperture ring. The rear lens element is flat and flush with the back of the lens.The second version (serial numbers above 500,000) is 470g in weight, 87mm long retracted, and the focus grip is 38mm wide. There is no IR focus mark, but there is a white variable aperture dot between 3.5 and 5.6 on the aperture ring. The rear lens element is recessed and convex. The construction of the lens is that of a one touch zoom design with a built in close focus mechanism which allows a minimum focus distance of 31cm with a maximum reproduction ratio of 1:5. There are sixteen lens elements in twelve groups and the filter thread is 55mm. The variable aperture was a design compromise to keep weight and size down, it provides a reasonably bright f/3.5 at the wide-angle setting but gradually stopped down to a dimmer f/4.5 when reaches the telephoto range. The big disadvantage is the rate at which the aperture varies through the range and this convinced me of the practicality of using TTL flash back in my days of shooting transparency with OM cameras.
At the 35mm end the lens is remarkably free of distortion. Wide open the CA is very apparent, but this is easily corrected in post. The centre of the test image not crisply sharp and is also lacking in contrast which adds to the impression of softness. Bumping up the contrast in post improves things greatly. I never questioned the sharpness of this lens when shooting film – hardly surprising when you consider I most shot Fuji Chrome Velvia 50 or Kodachrome 25 or 64 all of which are high contrast films. At f8 the centre sharpness increases nicely but the edges are still soft and lacking contrast.
At 105mm the lens exhibits a slight pincushion effect. This is where image magnification increases with distance from the optical axis and parallel lines bow inwards like a pincushion. This is not uncommon in this type of lens at the long end. Wide open at f4.5 the image is soft and lacking in contrast at the centre and the edges are even worse. By f8 the centre of the image has improved a little but the edges have not. CA is present but again is easily dealt with.
Back in the day this was my go to lens – I shot nearly everything on it and I thought it was great. Here are some examples of it from the early 1980’s shot on film and scanned.
So lets see how it does on the Sony A7r.
Overall the lens lacks the contrast present in the other OM lenses. The bokeh is somewhat swirly though not as obvious as that exhibited by the Helios 58mm f/2 lens and is what some might call a little nervous. Wide open this lens is very prone to vignetting and filter users will have to be aware of this. Now zoom lens from this era have a bad rap for poor image quality so I thought that it would be interesting to compare this lens with a modern standard zoom – namely the Sony FE 28-70mm F3.5-5.6 OSS. Some people might find this an unfair comparison comparing a cheap kit lens with a premium quality zoom lens, but there is over thirty years separating them and lens design has come on a long way in that time especially in regard to zooms.
The most obvious thing that comes to mind when comparing the two lenses is the build quality – compared to the Olympus 35-105 the Sony feels like it came out of a Christmas cracker. It feels very cheap and plasticky and quite honestly it doesn’t feel very durable at all. In fact the word “disposable” comes to mind when handling it and I don’t think we’ll see many working copies of this lens around in thirty years time.
So having looked at the test shots what can we say? Well wide open at 28mm the centre the lens is sharp and contrasty and amazingly it improves considerably when stopped down to f8. At the edges wide open there is a significant drop off of sharpness and contrast and this only improves slightly when stopping down to f8. Distortion and chromatic aberration are automatically corrected in camera. At 70mm wide open in the centre the lens is a little soft and flat with hardly improvement when stopping down to f8. At the edges it is much the same story. The only real advantage this lens has over the Olympus is the automatic lens profiles that correct CA and distortion and the lens coatings are marginally better all of which can be overcome with a little fiddling around in Lightroom. The Sony sells for around $350 AUD at the moment while the Olympus can be picked up for less than $100 AUD on EBay. What is more worrying is that according to DXO the Sony FE Carl Zeiss Vario-Tessar T* 24-70mm F4 ZA OSS which is priced at around $1500 AUD is not significantly better than its cheaper sibling and coupled with accounts of substantial sample variation just doesn’t seem to have endeared it to Sony Alpha users. All this makes the Olympus OM Zuiko 35-105mm f3.5-4.5 seem like a screaming bargain if you don’t mind having a manual focus lens as your walk about kit.
My reviews of the Olympus OM Zuiko MC 24mm f2.8 and the Olympus OM Zuiko MC 50mm f1.4 can be seen by clicking on the links.
